Variation of shape, size, and element type is available upon customer’s request
Operating up to 300°C with high stability
Excellent insulation even in a small space(tight PI tubing)
Cost effective design

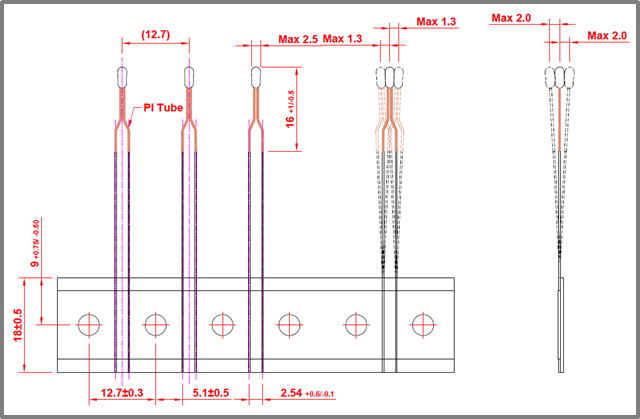

Polyimide tube
It will be a great help to the production cost by contributing to the automated production of customers.
Variation of shape, size, and element type is available upon customer’s request
Operating up to 300°C with high stability
Excellent insulation even in a small space(tight PI tubing)
Cost effective design
Polyimide tube
Operating temperature | -50 ~ 300°C |
Resistance tolerances | ±0.5%, ±1.0%, ±2.0%, ±3.0%, Special |
Insulation resistance | 500VDC Min 100Mohm (Between lead and tube) |
> Explanation of Part No.
DG1 | B | 103 | F | B | - | X |
Type | RT Curve | Resistance | Tolerance | Reference temp.(°C) | Packing type | |
Glass size of | R-T curve | 502=50X100 | F : R±1%, B±1% | A :0°C Other ... | Blank : Bulk A : Ammo taping B : Reel taping |
> Part No List.
Part No. | Resistance temperature
| Resistance
| B value | ||||||
DG&A502xB | 25 | 5 | B25/85 | 3970, 3977 | |||||
DG&A103xB | 25 | 10 | |||||||
DG&A203xB | 25 | 20 | |||||||
DG&B103xB | 25 | 10 | B25/85 | 3435 | |||||
DG&B27.62xA | 0 | 27.62 | |||||||
DG&C49.12xB | 25 | 49.12 | B25/85 | 3990 | |||||
DG&C503xB | 25 | 50 | B25/85 | 3990 | |||||
DG&C29.46x37 | 37 | 29.46 | |||||||
DG&C17.59xC | 50 | 17.59 | B0/100 | 3970 | |||||
DG&C8.514xD | 70 | 8.514 | |||||||
DG&C332xF | 100 | 3.3 | |||||||
DG&C133.5xJ | 4 | 133.5 | |||||||
DG&C135.5xJ | 4 | 135.5 | |||||||
DG&D104xB | 25 | 100 | B25/85 | 4060 | |||||
DG&D14.20xS | 75 | 14.20 | B0/100 | 4000 | |||||
DG&D6.282xF | 100 | 6.282 | |||||||
DG&D551xH | 200 | 0.550 | B100/200 | 4330 | |||||
DG&D983xB | 25 | 98.64 | B25/85 | 4066 | |||||
DG&E234xB | 25 | 230 | B25/85 | 4250 | |||||
DG&E104xB | 25 | 100 | |||||||
DG&E103.9xB | 25 | 103.9 | |||||||
DG&E133xF | 100 | 13.09 | B100/200 | 4537 | |||||
DG&E15.78xK | 95 | 15.78 | |||||||
DG&E3.241xG | 150 | 3.241 | |||||||
DG&E102xH | 200 | 1 | B100/200 | 4550 | |||||
DG&E1.175xH | 200 | 1.175 | B100/200 | 4550 | |||||
DG&E3.4513x114 | 114 | 3.4513 | B25/50 | 4200 | |||||
DG&F502xB | 25 | 5 | B25/85 | 3324 | |||||
DG&F13.29xA | 0 | 13.29 | B0/25 | 3200 | |||||
DG&G6.000xA | 0 | 6 | B0/100 | 3390 | |||||
DG&G2.186xB | 25 | 2.186 | B25/85 | 3420 | |||||
DG&J10.74xB | 25 | 10.74 | B0/100 | 3450 | |||||
DG&J3.485xC | 50 | 3.485 | |||||||
DG&J1.325xJ | 90 | 1.325 | |||||||
DG&M104xB | 25 | 100 | B25/85 | 3990 | |||||
DG&N135xB | 25 | 1.388 | B25/85 | 4550 | |||||
DG&N135xB | 25 | 1.300 | |||||||
DG&M10.65xE | 85 | 10.65 | B25/50 | 3950 | |||||
DG&M6.71xF | 100 | 6.71 | |||||||
DG&F5.369xB | 25 | 5.369 | B25/85 | 3480 | |||||
B0/100 | 3450 | ||||||||
DG&P153xA | 0 | 15 | B0/100 | 3450 | |||||
DG&J202xB | 25 | 2 | B25/50 | 3530 | |||||
DG&J103xB | 25 | 10 | B25/85 | 3520 | |||||
DG&B157xX | 180 | 0.1568 | B25/85 | 3435 | |||||
DG&B176xX | 180 | 0.176 | |||||||
DG&H104xB | 25 | 100 | B25/85 | 4390 | |||||
DG&H1.196xG | 150 | 1.196 | |||||||
DG&A272xB | 25 | 2.7 | B0/50 | 3880 | |||||
DG&K203xB | 25 | 20 | B25/85 | 3690 | |||||
※ Where x – Maybe follow up by S, F, A, G, B, H, C, I or J for resistance tolerance, refer to NOMENCLATURE for detailed.
※ Where y – maybe follow up by W or C for Type, refer to NOMENCLATURE for detailed.
※ The information here can be downloaded from "SUPPORT"
- High temperature sensing, control and compensation
- Automotive for temperature monitoring, controlling & Management
- HVAC & White goods applications
- Industrial Instrumentation
- Medical & Chemical Industry
※ ISTEC specializes in customized products. Please contect us for various options.
