Variation of shape, size, and element type is available upon customer’s request
Operating up to 300°C with high stability
Excellent insulation even in a small space(tight PI tubing)
Available at high temperatures
Polyimide tube

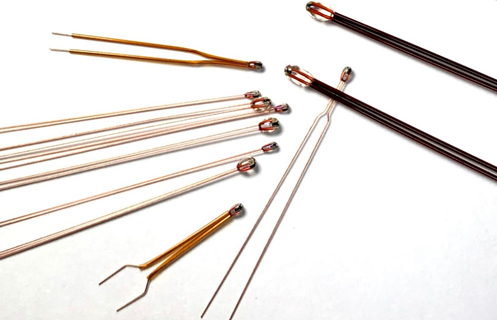

Polyimide tubes allow safe use at high temperatures. It can be made in shape that meets the conditions of use.
Variation of shape, size, and element type is available upon customer’s request
Operating up to 300°C with high stability
Excellent insulation even in a small space(tight PI tubing)
Available at high temperatures
Polyimide tube
Operating temperature | -50 ~ 300°C |
Resistance tolerances | ±0.5%, ±1.0%, ±2.0%, ±3.0%, Special |
Insulation resistance | 500VDC Min 100Mohm (Between lead and Tube) |
> Explanation of Part No.
DG1 | B | 103 | F | B | - | X | 00 |
Type | RT Curve | Resistance | Tolerance | Reference temp.(°C) | Optional code | ||
Glass size of DG2 : Φ1.8mm DG3 : Φ1.3mm DG4 : Φ1.0mm | R-T curve | 502=50X100 | F : R±1%, B±1% | A :0°C Other ... | Blank : Bulk A : Ammo taping B : Reel taping | Pitch PI tube Length etc.... | |
> Part No List.
Part No. | Resistance temperature
| Resistance
| B value | ||||||
DG&A502xB | 25 | 5 | B25/85 | 3970, 3977 | |||||
DG&A103xB | 25 | 10 | |||||||
DG&A203xB | 25 | 20 | |||||||
DG&B103xB | 25 | 10 | B25/85 | 3435 | |||||
DG&B27.62xA | 0 | 27.62 | |||||||
DG&C49.12xB | 25 | 49.12 | B25/85 | 3990 | |||||
DG&C503xB | 25 | 50 | B25/85 | 3990 | |||||
DG&C29.46x37 | 37 | 29.46 | |||||||
DG&C17.59xC | 50 | 17.59 | B0/100 | 3970 | |||||
DG&C8.514xD | 70 | 8.514 | |||||||
DG&C332xF | 100 | 3.3 | |||||||
DG&C133.5xJ | 4 | 133.5 | |||||||
DG&C135.5xJ | 4 | 135.5 | |||||||
DG&D104xB | 25 | 100 | B25/85 | 4060 | |||||
DG&D14.20xS | 75 | 14.20 | B0/100 | 4000 | |||||
DG&D6.282xF | 100 | 6.282 | |||||||
DG&D551xH | 200 | 0.550 | B100/200 | 4330 | |||||
DG&D983xB | 25 | 98.64 | B25/85 | 4066 | |||||
DG&E234xB | 25 | 230 | B25/85 | 4250 | |||||
DG&E104xB | 25 | 100 | |||||||
DG&E103.9xB | 25 | 103.9 | |||||||
DG&E133xF | 100 | 13.09 | B100/200 | 4537 | |||||
DG&E15.78xK | 95 | 15.78 | |||||||
DG&E3.241xG | 150 | 3.241 | |||||||
DG&E102xH | 200 | 1 | B100/200 | 4550 | |||||
DG&E1.175xH | 200 | 1.175 | B100/200 | 4550 | |||||
DG&E3.4513x114 | 114 | 3.4513 | B25/50 | 4200 | |||||
DG&F502xB | 25 | 5 | B25/85 | 3324 | |||||
DG&F13.29xA | 0 | 13.29 | B0/25 | 3200 | |||||
DG&G6.000xA | 0 | 6 | B0/100 | 3390 | |||||
DG&G2.186xB | 25 | 2.186 | B25/85 | 3420 | |||||
DG&J10.74xB | 25 | 10.74 | B0/100 | 3450 | |||||
DG&J3.485xC | 50 | 3.485 | |||||||
DG&J1.325xJ | 90 | 1.325 | |||||||
DG&M104xB | 25 | 100 | B25/85 | 3990 | |||||
DG&N135xB | 25 | 1.388 | B25/85 | 4550 | |||||
DG&N135xB | 25 | 1.300 | |||||||
DG&M10.65xE | 85 | 10.65 | B25/50 | 3950 | |||||
DG&M6.71xF | 100 | 6.71 | |||||||
DG&F5.369xB | 25 | 5.369 | B25/85 | 3480 | |||||
B0/100 | 3450 | ||||||||
DG&P153xA | 0 | 15 | B0/100 | 3450 | |||||
DG&J202xB | 25 | 2 | B25/50 | 3530 | |||||
DG&J103xB | 25 | 10 | B25/85 | 3520 | |||||
DG&B157xX | 180 | 0.1568 | B25/85 | 3435 | |||||
DG&B176xX | 180 | 0.176 | |||||||
DG&H104xB | 25 | 100 | B25/85 | 4390 | |||||
DG&H1.196xG | 150 | 1.196 | |||||||
DG&A272xB | 25 | 2.7 | B0/50 | 3880 | |||||
DG&K203xB | 25 | 20 | B25/85 | 3690 | |||||
※ Where x – Maybe follow up by S, F, A, G, B, H, C, I or J for resistance tolerance, refer to NOMENCLATURE for detailed.
※ Where y – maybe follow up by W or C for Type, refer to NOMENCLATURE for detailed.
※ The information here can be downloaded from "SUPPORT"
- High temperature sensing, control and compensation
- Automotive for temperature monitoring, controlling & Management(WTS, OTS)
- HVAC & White goods applications
- Industrial Instrumentation
- Medical & Chemical Industry
※ ISTEC specializes in customized products. Please contect us for various options.
